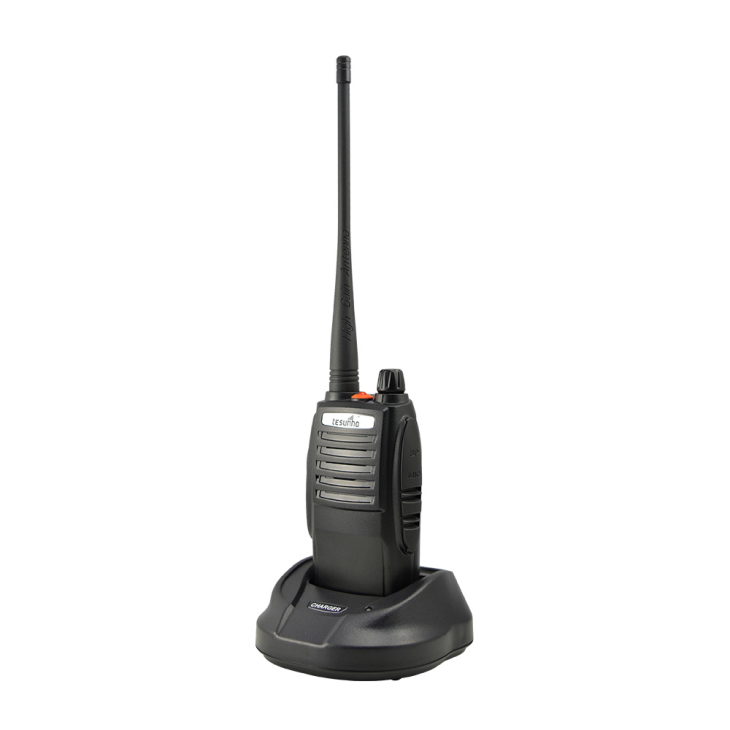

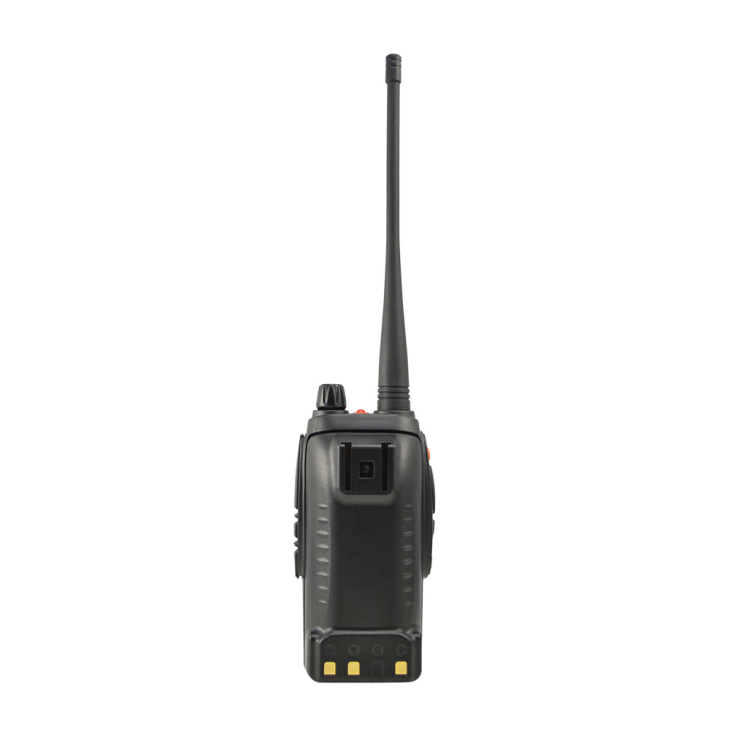

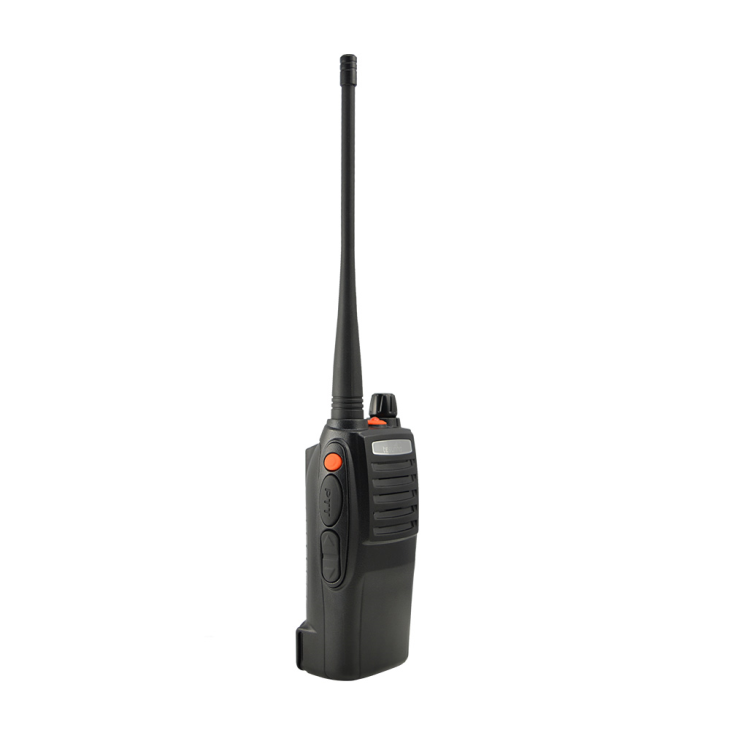

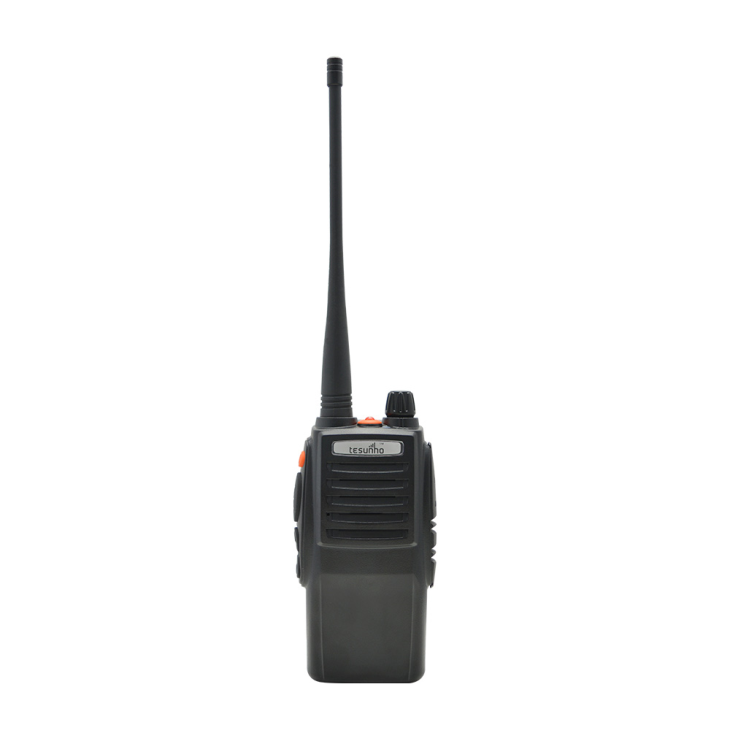

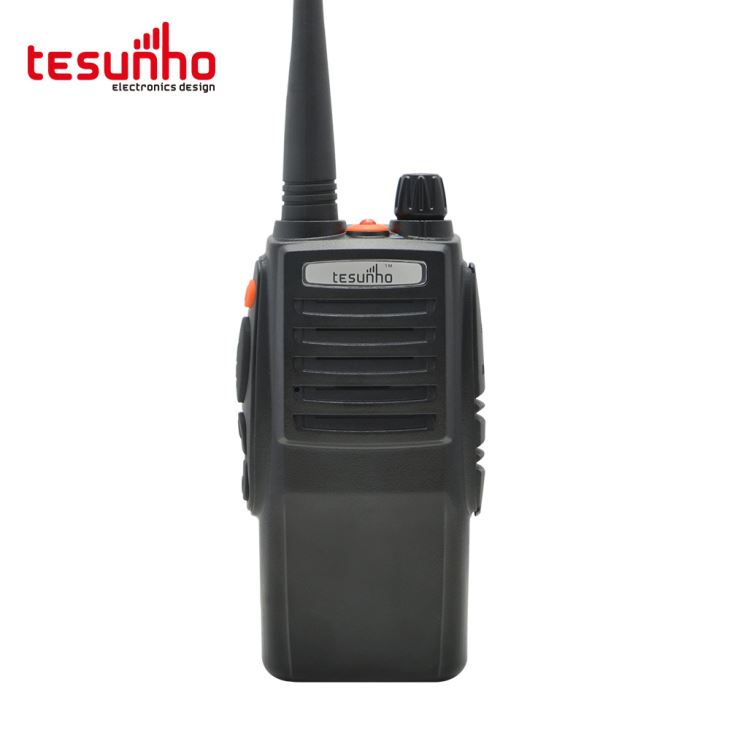

Analog High Power 10W Walkie Talkie, TH-850 Plus Tesunho

1.High output power 10W

2.Ultra-low power programmable (0.5W)

3.ID Alarm

4.Large Capacity (7.4V 2500mAh)

5.99 Channels

Inquiry

Type	Parameter Item	Specification
General	Model No.	TH-850Plus
	Size(Without Antenna)	117mm(W)×60mm(L)×40mm(D)
	Weight(With Battery)	274g
	Battery	2500mAh(li-on battery)
	Operating Voltage	7.2V DC ±15%

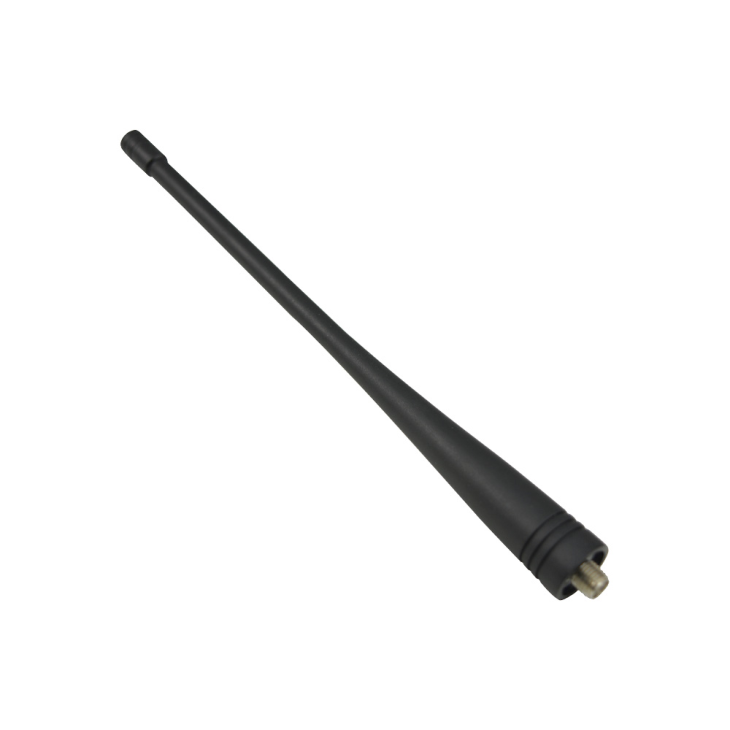

	Antenna Impedance	50Ω
	Channel Spacing	12.5kHz/25kHz
	Working Temperature	-30℃ to- + 60℃
	Frequency Stability	±2.5 ppm
	Frequency Band	VHF	UHF
	Frequency Range	136-174MHz/350-390MHz	400-480MHz/440-520MHz
	Channel Capacity	99
Transmitter	RF Power Output	0.5W/5W/10W
		Wide band	Narrow band
	Modulation Type	16KΦF3E	11KΦF3E
	Spurious Emission	≤-36dBm	≤-36dBm
	Adjacent Channel Power	≥70dB	≥60dB
	Audio Distortion	≤5%
Receiver		Wide band	Narrow band
	RF Sensitivity(12db SINAD)	0.22uv	0.22uv
	Adiacent Channel Selectivity	≥60dB	≥55dB
	Intermodulation Rejection	≥65dB	≥60dB
	Spurious Response	≥65dB	≥65dB
	Audio Power Output	500mW
	Audio Distortion	≤5%

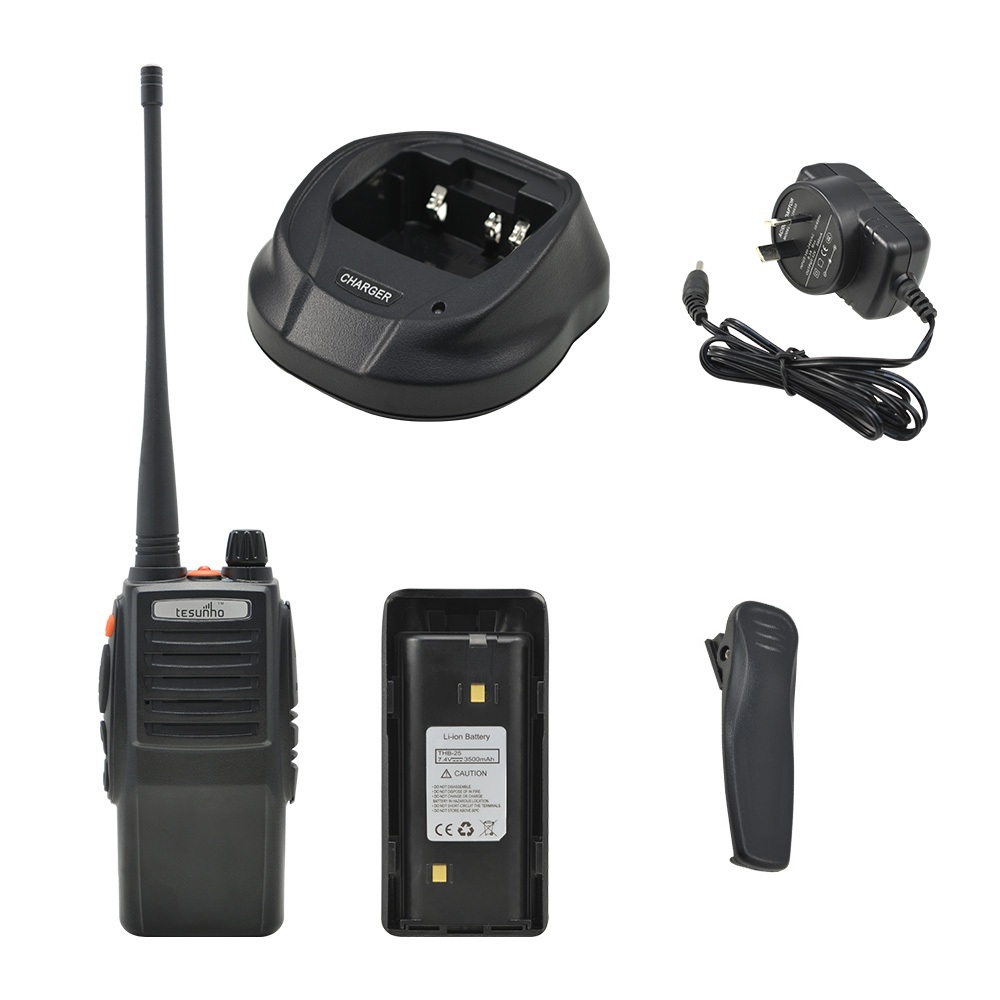

Packaging & Shipping :
