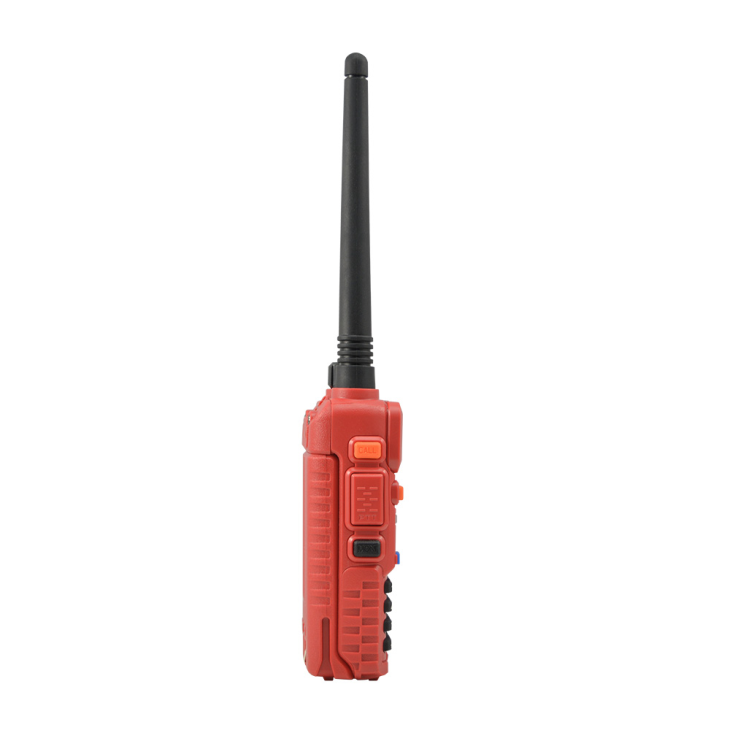

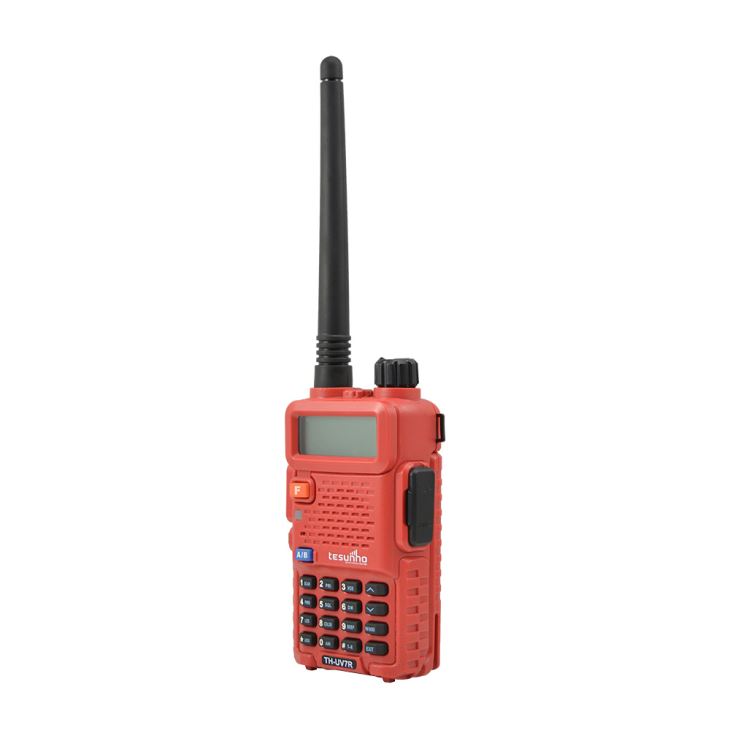

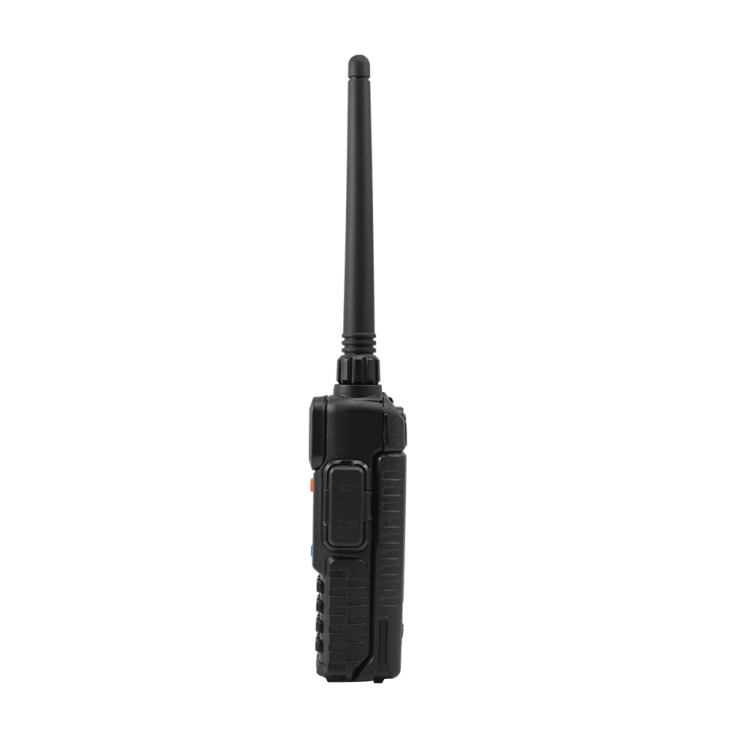

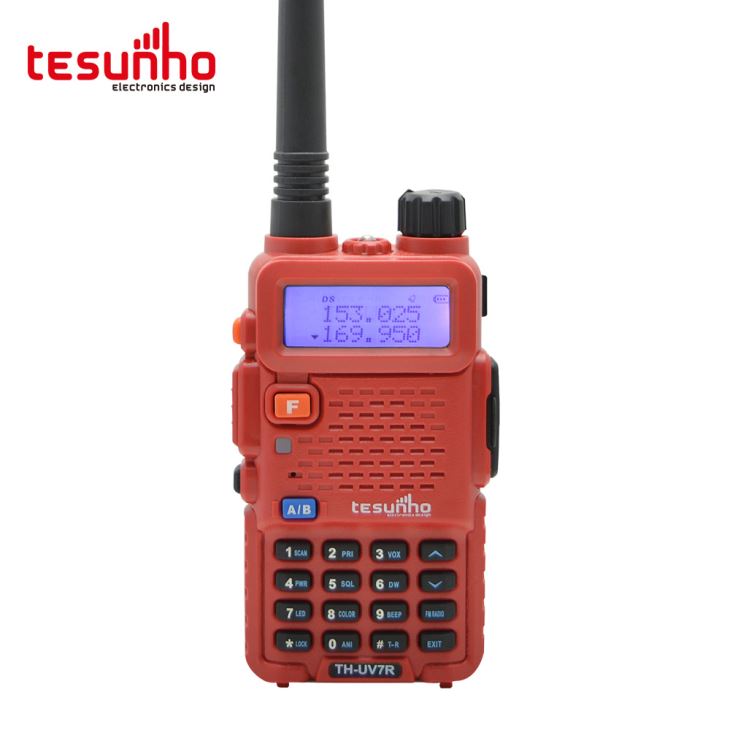

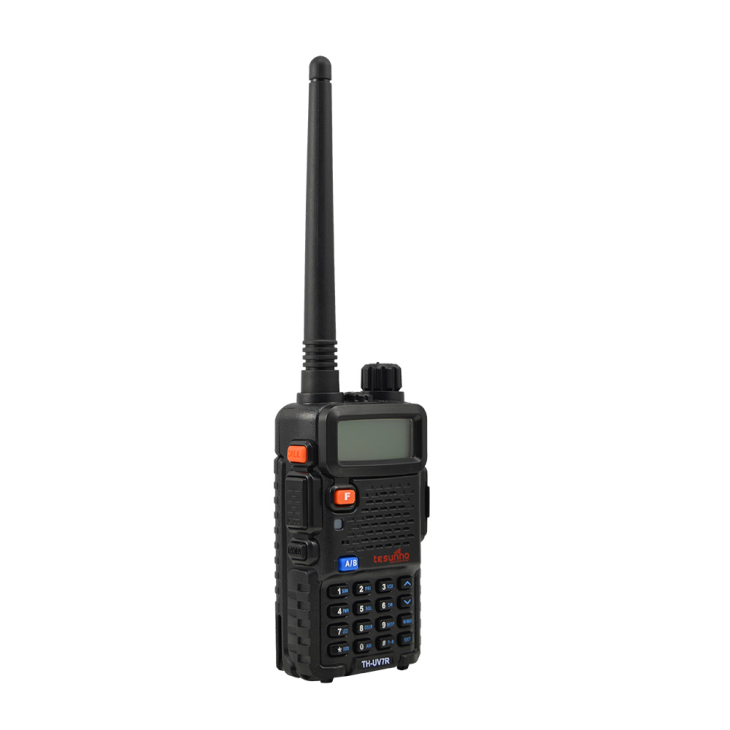

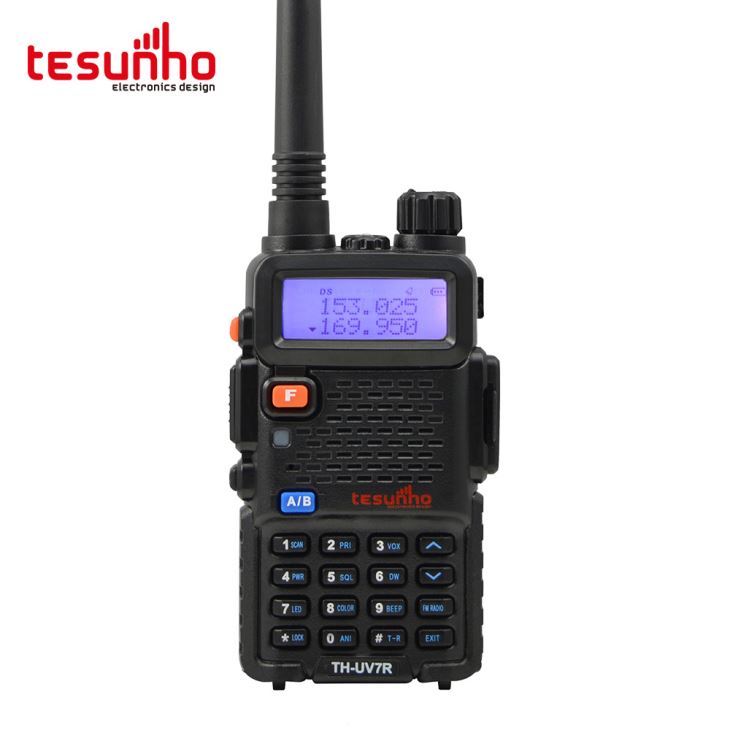

Factory Direct Sale Dual Band Two Way Radio 5watt China TH-UV7R
TH-UV7R is high quality analog transceiver with the competitive price.
1.Dual Band,Dual Display,Dual Standby
2.Mini & Deft Appearance
3.VOX Operation
4. Color Optional: Black, camouflage, red, sandy,orange, green
Specifications:
| Item number | TH-UV7R |
| General | |
| Frequency Range | 70-108MHz(FM Receive only) 136-174MHz 245-246MHz 400-520MHz |
| Channel No. | 128*2 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.2V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 100 x 52 x 32 mm |
| Weight | 250g(including battery, antenna) |
| Transmitter | |
| Output power | ≥4W(H) ≥0.5W(L) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
| Spurious Radiation | <7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | <10% |
| Receiver | |
| RF Sensitivity | -122dbm(12db SINAD) |
| Audio power | ≥0.5W |
| Audio Distortion | ≤10% |
| Intermediation | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Selectivity | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Spurious Rejection | ≤-65dB |
| Blocking | ≥85dBuv/m |
More parameters, please contact with us!
Packaging & Shipping
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton |
Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH-UV7R | 21*21*8 |
0.56 |
50 |
52*42*80 |
32.5 | DHL/FedEx/UPS/TNT /EMS/By Air/By Sea |
Lead time:
Item | Quantity(pcs) | Production Lead Time |
walkie talkie | 1-50 | 1-3days |
50-200 | 2-5days | |
200-500 | 2-10days | |
500-1000 | 5-21days |
Lead Time:
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal / L/C
Tesunho is aim to be the leading industrial walkie talkie solution supplier.
So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
√ Paid maintenance and parts: for artificial faulty
2. Brand OEM service:
√ Partly OEM service
√ Complete OEM service
3. Technical ODM service:
We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
12 Engineers:
It embraces 12 professional engineers, including hardware engineer, RF engineer,Android system engineers, embedded engineers
04 Exhibitions:
IWCE
GS exhibition spring
GS exhibition autumn
PMR expo
18 Years:
It has 18 years of ODM experience on rail way project, security guard, patrol system, logistics customization, hotel inner communication system
15,000/6000 Pieces:
It can produce 15,000 pieces analog radios or 6000 pieces WCDMA radios per month
Tesunho is the pioneer in PoC product and won success.
We won the reward from the module supplier for our effort and success.
And our good reputation started with our partners success at the local market.
Inquiry
